1N4001-1N4007 General Purpose Rectifier Diode
The 1N4001-1N4007 series is a widely used family of general-purpose silicon rectifier diodes designed for AC-to-DC rectification, power conversion, and circuit protection applications. With a standard DO-41 axial package, these diodes offer stable performance, low forward voltage drop, low leakage current, and high surge current capability.
The series includes multiple voltage ratings from 50V to 1000V, allowing engineers to select suitable components according to different voltage requirements. All models provide a 1A average forward rectified current rating, making them suitable for various low and medium power electronic applications.

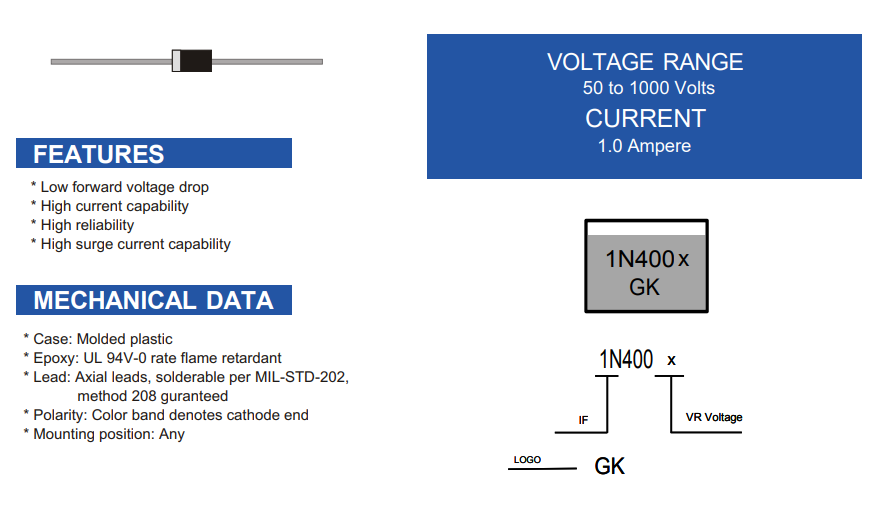

Key Features
- Part Number: 1N4001 / 1N4002 / 1N4003 / 1N4004 / 1N4005 / 1N4006 / 1N4007
- Type: General Purpose Silicon Rectifier Diode
- Average Forward Current: 1A
- Reverse Voltage Range: 50V to 1000V

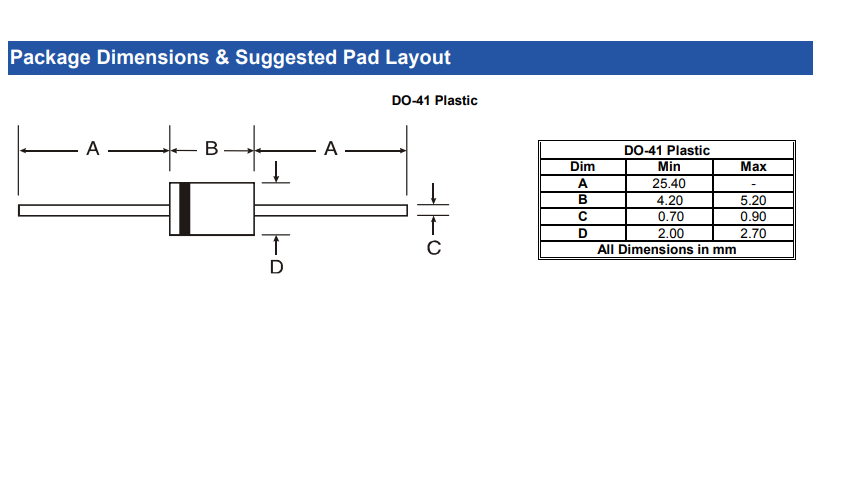

- Package: DO-41 Axial Lead Package
- Low Forward Voltage Drop
- Low Reverse Leakage Current
- High Surge Current Capability
- RoHS Compliant Options Available
Voltage Selection Guide
| Model |
Maximum Reverse Voltage |
| 1N4001 |
50V |
| 1N4002 |
100V |
| 1N4003 |
200V |
| 1N4004 |
400V |
| 1N4005 |
600V |
| 1N4006 |
800V |
| 1N4007 |
1000V |
Applications
- AC/DC Power Supply Rectification
- Battery Chargers
- Adapter Power Modules
- Inverters and Converters
- Motor Control Circuits
- Reverse Polarity Protection
- Industrial Control Boards
- Consumer Electronics
- Energy Storage System Control Boards
- PCBA Assembly Projects
Why Choose Our Supply Solution
Beyond component supply, we support customers with BOM optimization, electronic component sourcing, and customized PCBA solutions.
Our Shenzhen-based supply chain network provides:
- Competitive pricing for bulk electronic components
- Alternative component sourcing for cost reduction
- BOM review and optimization support
- PCBA manufacturing integration
- Customized procurement solutions for OEM/ODM projects
Whether you need standard diodes or a complete control board solution, we help optimize your electronics supply chain from components to finished products.
